Note: Use the schematics at your own risk!

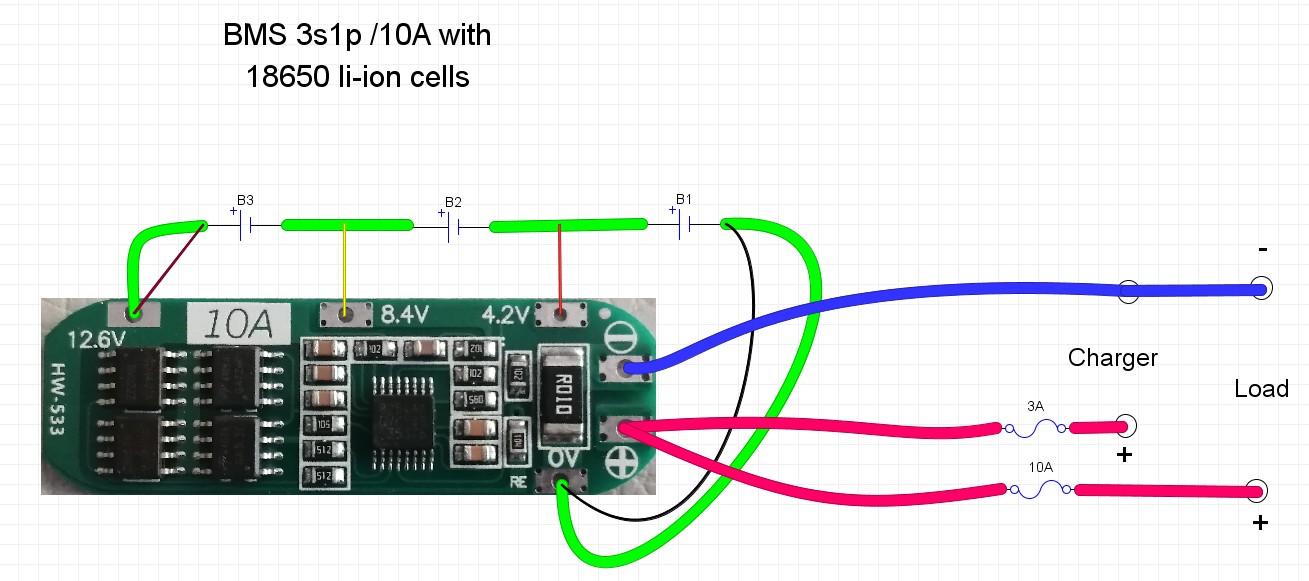

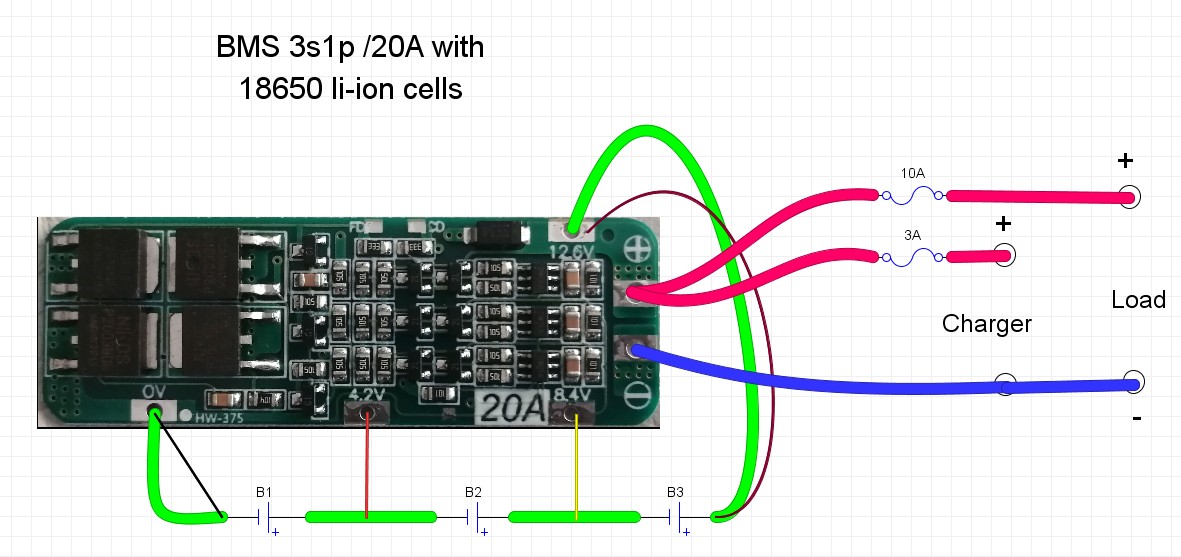

Different BMS bought on Aliexpress with their connections to the load and a charger.
Fuses values depend on your applications.
PCBs labelled HW-533 and HW-375 respectively.
